High Speed Fully Automatic PCB Lead Cutting Machine Component Lead Trimming Solution

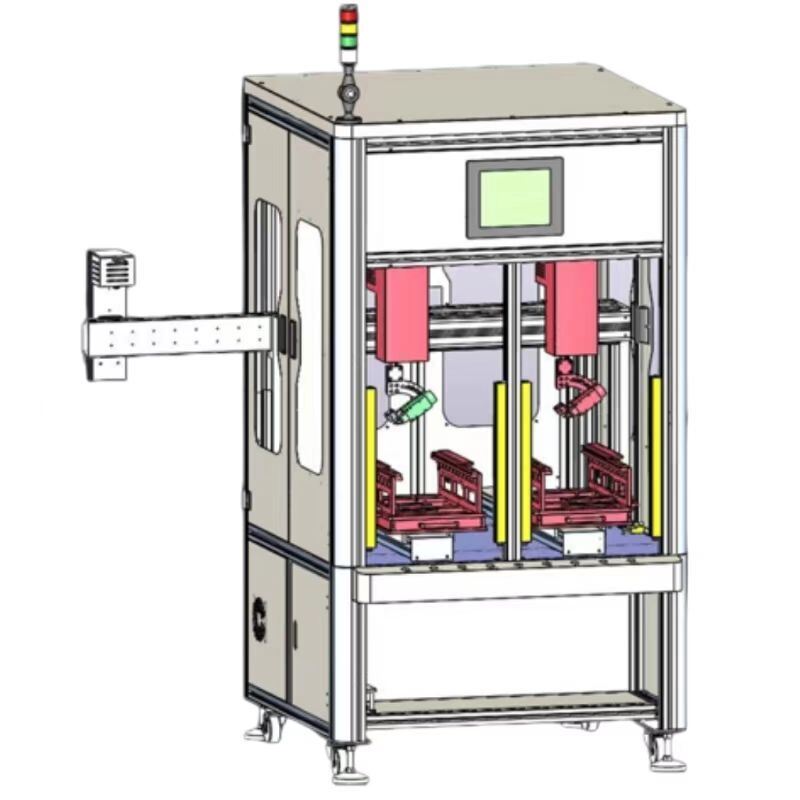

High Speed Fully Automatic PCB Lead Cutting Machine

Advanced component lead trimming solution for precision PCB manufacturing with automated operation and high-speed performance.

Technical Specifications

Parameter	Specification
Valid Travel Range	X1/200/X2/200/Y1/300/Y2/300/Z1/100/R/360° (customizable)
Speed	100 points/minute
Repeat Accuracy	0.02-0.04mm (synchronous belt rotation)
Workload Capacity	X,Y load (10kg) Z load (5kg)
Dimensions	730mm × 900mm × 890mm
Weight	68kg
Frame Construction	Aviation aluminum alloy structure with brushed electrophoresis surface treatment
Drive System	Stepper motor + linear guide + timing belt
Motor Type	Stepper precision motor
Axis Speed (X/Y/Z)	0-600mm/sec
Power Supply	Full voltage AC110V-220V
Motor Control Axes	5-axis
Resolution	0.01mm/Axis
Programming Method	Teach programming or drag programming
Motion Control System	Five-axis motion control card, stable and efficient
Cutting Capacity	Copper 1.5mm, Iron 1.0mm, Steel 0.5mm (customizable)
Program Capacity	Point files ≤ 99, Points ≤ 999
Motion Tweening	3-axis
I/O Output	8 in 16 out
Storage Expansion	Supports flash memory

Application Scope

Suitable for all types of consumer electronics PCBs and electronic component manufacturing.

Key Features & Benefits

High Versatility: Compatible with PCB components or wires, with independent height control for single points or overall cutting operations
Enhanced Flexibility: Universal fixtures for quick interchange and direct program calling via handle interface
Precision Performance: Defect rate ≤0.02% for standard products with tolerance under 0.2mm
Compact Design: Space-efficient footprint for easy integration into production lines
Dual Platform Operation: One-in-one-out platform configuration minimizes downtime and doubles cutting efficiency
Safety Options: Available protective measures including safety light curtains with auto-start protection
Touch Screen Interface: Modern control system with optional safety grating protection

Note: Touch screen models offer approximately 67% faster programming compared to handle-type models. Consumable parts include air scissor heads with 1-2 month service life depending on usage.
