                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3 axis glue dispenser machine, automatic PCB glue dispenser, PCB depaneling glue applicator


Ağırlık:	70 kg	Güç:	5 kw
Gerilim:	220V, 110V	Maksimum Hız:	400 mm/sn
Çalışma Aralığı:	100 mm'den 500 mm'ye	Çalışma Alanı:	300300100mm
Hareket hızı X/Y:	500 mm/sn	Hareket hızı Z:	400 mm/sn
Makine boyutu:	537560820mm	Çekirdek bileşenler:	PLC, Şanzıman, Motor, Pompa
Malzeme:	Döküm alüminyum profil	Motorlu Tip:	Japon Xinrong step motor
Lineer cetvel:	Tayvan gümüş doğrusal kılavuzu	Senkron Kayış:	İtalyan ithal
Kablo Tipi:	İthal, katlanmaya dayanıklı korumalı kablo

Ağırlık:	70 kg
Güç:	5 kw
Gerilim:	220V, 110V
Maksimum Hız:	400 mm/sn
Çalışma Aralığı:	100 mm'den 500 mm'ye
Çalışma Alanı:	300300100mm
Hareket hızı X/Y:	500 mm/sn
Hareket hızı Z:	400 mm/sn
Makine boyutu:	537560820mm
Çekirdek bileşenler:	PLC, Şanzıman, Motor, Pompa
Malzeme:	Döküm alüminyum profil
Motorlu Tip:	Japon Xinrong step motor
Lineer cetvel:	Tayvan gümüş doğrusal kılavuzu
Senkron Kayış:	İtalyan ithal
Kablo Tipi:	İthal, katlanmaya dayanıklı korumalı kablo

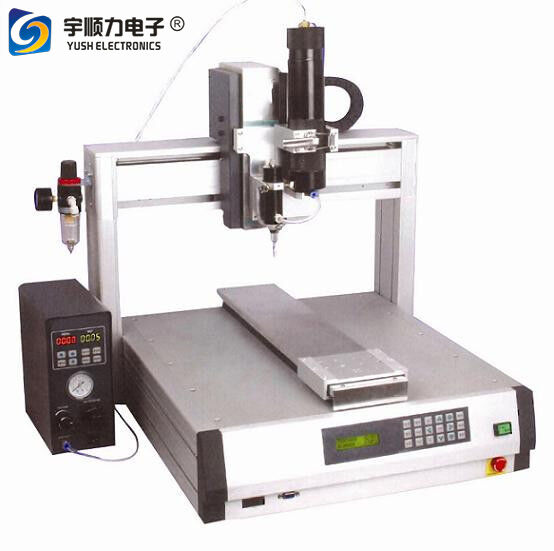

Automatic 3 Axis Glue Dispenser

Product Overview

Compact desktop three-axis dispensing machine designed for efficient batch assembly and distribution operations.

Key Features

Space-saving desktop design ideal for batch assembly operations
High-speed performance at 400 mm/s with exceptional durability
Unique driving circuit eliminates dispensing offset for precision application
Manufacturer's technical expertise ensures application accuracy
Excellent straightness and high-definition tracking capabilities
Clean corner R-shape application without liquid residue or skew
Adjustable working range from 100 mm to 500 mm to suit various workspace requirements
USB connectivity for easy program file upload/download and data management
User-friendly operation interface with intuitive learning curve
CNC-processed machine tool ensures XYZ verticality and enhanced processing accuracy

Hot Melt Adhesive Machine Advantages

Die-cast aluminum profile structure for aesthetic appearance and structural consistency
CNC-machined components ensuring part accuracy and uniformity
Standardized assembly process with 100% strict calibration standards
Premium core components: Japanese Xinrong stepper motor, Italian imported synchronous belt, Taiwan silver linear guide
Smooth, quiet operation during high-speed glue dispensing
Special assembly process for synchronous pulley and motor with Japanese technology belts
Modular assembly design allowing quick replacement of individual components
Import brand fold-proof shielded cables for reliable operation and safety
