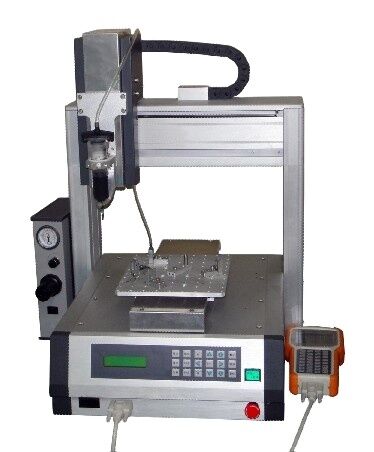

Smart Solder Paste Dispenser . Automatic Liquid Glue Dispensing Machine Robot

Ürün Detayları

Menşe yeri: Pompa emme

Marka adı: YUSH

Model numarası: YS-S330

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1 takım

Fiyat: $5,000 / set

En İyi Fiyatı Alın
Vurgulamak:

automatic solder paste dispenser

,

PCB liquid glue dispensing machine

,

smart glue dispensing robot

Ağırlık:
70 kg
Çalışma Alanı:
300*300*60mm
Çalışma Nemi:
%20~90 yoğunlaşma yok
Boyutlar:
485*505*610mm
Gerilim:
250W
Tutkal Pompası Viskozitesi:
neredeyse tüm viskozite
dağıtım kafası:
istek üzerine bir veya daha fazla
Güç:
220/110V
Maksimum Hız:
500mm/sn
Min Dağıtım Miktarı:
0.001ml
Çözünürlük:
0,01 mm
Tekrarlanabilirlik:
+/-0,01 mm
Boyut:
460*450*480mm
Çekirdek bileşenler:
Pompa
Modeli:
YS-S330
Ağırlık:
70 kg
Çalışma Alanı:
300*300*60mm
Çalışma Nemi:
%20~90 yoğunlaşma yok
Boyutlar:
485*505*610mm
Gerilim:
250W
Tutkal Pompası Viskozitesi:
neredeyse tüm viskozite
dağıtım kafası:
istek üzerine bir veya daha fazla
Güç:
220/110V
Maksimum Hız:
500mm/sn
Min Dağıtım Miktarı:
0.001ml
Çözünürlük:
0,01 mm
Tekrarlanabilirlik:
+/-0,01 mm
Boyut:
460*450*480mm
Çekirdek bileşenler:
Pompa
Modeli:
YS-S330
Smart Solder Paste Dispenser . Automatic Liquid Glue Dispensing Machine Robot
Smart Solder Paste Dispenser - Automatic Liquid Glue Dispensing Machine Robot
High-precision automated dispensing system for various industrial adhesives and solder pastes with customizable programming and wide application range.
Key Specifications
Model YS-S330
Power 220/110 V
Voltage 250W
Working Area (X*Y*Z) 300*300*60 mm (Customizable)
Speed Max. 500mm/sec
Dispensing Quantity Min. 0.001ml
Resolution 0.01mm
Repeatability +/-0.01mm
Size (L*W*H) 460*450*480 mm
Weight 70KG
Compatible Materials
Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Capabilities
Precision dispensing for dots, lines, squares, circles, and irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
Advanced Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path programmable in robot or imported from external computer
  • Easy operation with amendable holder and programs
  • Multiple independent running program storage
  • High precision glue control system
  • Configurable multiple dispensing heads
  • Wide dispensing area supporting multiple products
  • Customizable working table available
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: transformers, SMD transformers, relays, coil motors
  • Communications industry: mobile phone components, radios, telephones
  • Computers and digital products: electronic toys, MP3/MP4 players
  • Switches, connectors, wires, and cable assemblies
  • Electronics: components, integrated circuits, PCB solder paste, LCD screens
  • Optics: lenses and optical heads
  • Mechanical hardware, battery boxes, and machinery spare parts
  • LED manufacturing industries
Quality Assurance
High quality construction with CE certification compliance for industrial safety standards.
