Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Full Auto Loader PCB depaneling machine, High-Precision SMT line loader, Automated PCB unloader machine


Ağırlık:	220 kg	Modeli:	YS-250XT
Ödeme Koşulları:	0.4-0.6Mpa	Ray Yüksekliği:	920 ± 30mm
Genel Boyut:	16909151680	Dergi boyutu:	535460565mm
PCB Boyutu:	530*390mm	PCB depolama miktarı:	100 adet
Konveyör Hızı:	9m/dakika	Kaldırma platformu adımı:	10,20,30,40
Güç kaynağı:	220V 50HZ	Motor gücü:	90W
Besleme motoru:	15W	Konveyör band:	7M düz kemer
Kontrol Paneli:	LED TFT dokunmatik ekran

Ağırlık:	220 kg
Modeli:	YS-250XT
Ödeme Koşulları:	0.4-0.6Mpa
Ray Yüksekliği:	920 ± 30mm
Genel Boyut:	16909151680
Dergi boyutu:	535460565mm
PCB Boyutu:	530*390mm
PCB depolama miktarı:	100 adet
Konveyör Hızı:	9m/dakika
Kaldırma platformu adımı:	10,20,30,40
Güç kaynağı:	220V 50HZ
Motor gücü:	90W
Besleme motoru:	15W
Konveyör band:	7M düz kemer
Kontrol Paneli:	LED TFT dokunmatik ekran

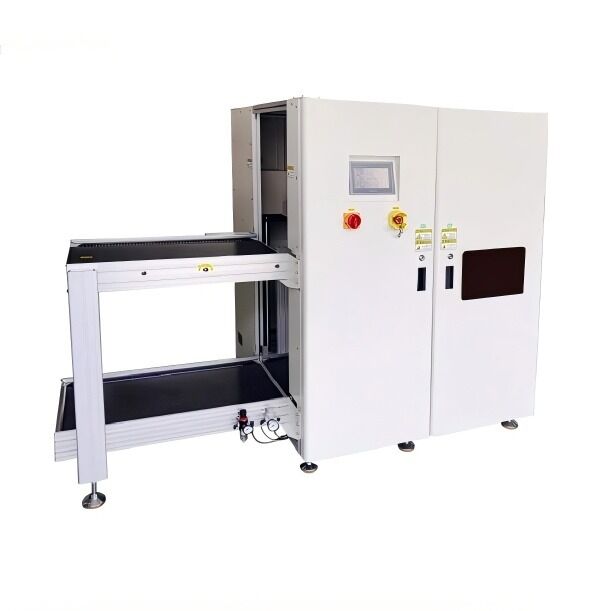

Full Auto Loader & Unloader: High-Precision Automated Smt Line

Full Auto Loader & Unloader: High-Precision Automated SMT Line

Key Features

PLC control system for precise automation
LED TFT touch screen control panel for intuitive operation
Four-step pitch selection (10, 20, 30, 40) for flexible configuration
Anti-clamping plate and foolproof functionality for enhanced safety
Bi-directional operation (left to right or right to left) as standard

Technical Specifications

Overall Dimensions	1690 × 915 × 1680 mm
Guide Rail Material	Special aluminum profile with Qianniao plastic chain
Magazine Drive	90W production brake motor with ball screw for step up/down movement
Feeding Box Transmission	15W constant speed platform motor
Clamping Mechanism	Pneumatic clamp structure
Magazine Specification	535 × 460 × 565 mm (L × W × H)
Maximum PCB Size	530 × 390 mm (L × W)
PCB Storage Capacity	100 pieces
Rail Transmission Height	920 ± 30 mm
Delivery Direction	Right to left / Left to right
Conveyor Belt	7M flat belt
Conveyor Transmission Speed	9 M/min
Lifting Platform Pitch Selection	10, 20, 30, 40
Control System	PLC programmable controller
Operation Features	Automatic board loading and board suction functionality
Control Panel	True color touch screen display
Pneumatic Components	Push plate cylinder position adjusted by screw rod
Power Supply	220V 50HZ
Air Source Requirement	0.4-0.6 MPa
