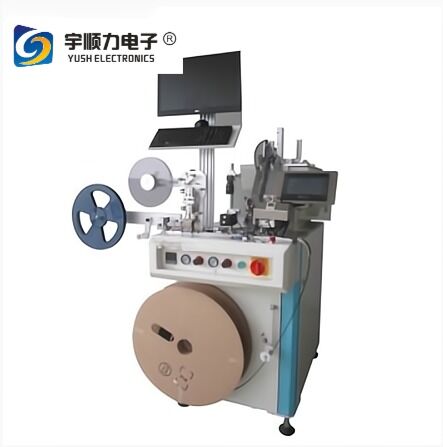

YS-12T-Automatic Tape and Reel Packaging Equipment

Ürün Detayları

Menşe yeri: Guangdong, Çin

Marka adı: YUSH

Sertifika: CE

Model numarası: YS-12T

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1 takım

Fiyat: $6,000 / set

En İyi Fiyatı Alın
Vurgulamak:

automatic tape and reel machine

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

Ağırlık:
160 kilo
Gerilim:
220VAC
Güç Kaynağı:
AC200V/50Hz
Çalışma Hava Basıncı:
0.40~0.6Mpa
Kapasite:
3K-15K UPH
Kontrol sistemi:
Programlanabilir Lojik Kontrol Cihazı+Dokunmatik Ekran+servo motor
Sıcaklık Kontrolü:
PID Sıcaklık Kontrolü
Besleme ve Alma:
EIA-481 standardına uygun lastik diskler ve kağıt diskler
bant genişliği:
12,16mm
Sızdırmazlık Formu:
Sıcak ve soğuk contalar
Giriş Gerilimi:
AC220V/50Hz
Maksimum Akım:
10A
Makine boyutu:
2030*528*583(U*G*Y)
Net ağırlığı:
160kg
Seçici konfigürasyon:
Resim Algılama Sistemi
Ağırlık:
160 kilo
Gerilim:
220VAC
Güç Kaynağı:
AC200V/50Hz
Çalışma Hava Basıncı:
0.40~0.6Mpa
Kapasite:
3K-15K UPH
Kontrol sistemi:
Programlanabilir Lojik Kontrol Cihazı+Dokunmatik Ekran+servo motor
Sıcaklık Kontrolü:
PID Sıcaklık Kontrolü
Besleme ve Alma:
EIA-481 standardına uygun lastik diskler ve kağıt diskler
bant genişliği:
12,16mm
Sızdırmazlık Formu:
Sıcak ve soğuk contalar
Giriş Gerilimi:
AC220V/50Hz
Maksimum Akım:
10A
Makine boyutu:
2030*528*583(U*G*Y)
Net ağırlığı:
160kg
Seçici konfigürasyon:
Resim Algılama Sistemi
YS-12T-Automatic Tape and Reel Packaging Equipment
YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
