Automatic BGA Rework Station YS-520

Name: Automatic BGA Rework Station YS-520
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-520
Price: 6 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Guangdong, Çin

Marka adı: YUSH

Sertifika: CE

Model numarası: YS-520

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1 takım

Fiyat: $6,000 / set

En İyi Fiyatı Alın

Ürün Detayları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic BGA Rework Station with warranty, YS-520 BGA Rework Station, PCB Depaneling Machine for BGA


Ağırlık:	20 kg	Gerilim:	220VAC
Güç:	3800W	Üst Isıtma Gücü:	Maks. 800W
Düşük Isıtma Gücü:	Maks. 1200W	Kızılötesi ısıtma gücü:	Maks. 1800W
PCB boyutu:	Maks300×280mm Min 10×10mm	Çip boyutu:	Maksimum 60×60mm Min. 1×1mm
PCB Kalınlığı:	0,3-5 mm	Sıcaklık Doğruluğu:	±2 derece
Sıcaklık Sensörü:	1 adet	Genel Boyut:	U460×G480×Y500mm
Fırçayı Döner:	360 derece	PCB konumu:	V şeklinde kart yuvası+üniversal jigler
Isıtma bölgeleri:	Bağımsız 3 bölge

Ağırlık:	20 kg
Gerilim:	220VAC
Güç:	3800W
Üst Isıtma Gücü:	Maks. 800W
Düşük Isıtma Gücü:	Maks. 1200W
Kızılötesi ısıtma gücü:	Maks. 1800W
PCB boyutu:	Maks300×280mm Min 10×10mm
Çip boyutu:	Maksimum 60×60mm Min. 1×1mm
PCB Kalınlığı:	0,3-5 mm
Sıcaklık Doğruluğu:	±2 derece
Sıcaklık Sensörü:	1 adet
Genel Boyut:	U460×G480×Y500mm
Fırçayı Döner:	360 derece
PCB konumu:	V şeklinde kart yuvası+üniversal jigler
Isıtma bölgeleri:	Bağımsız 3 bölge

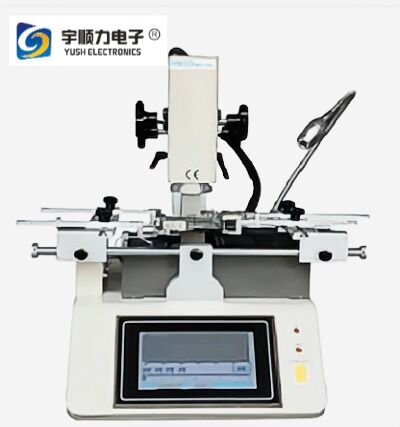

Automatic BGA Rework Station YS-520

Product Overview

The BGA Rework Station YS-520 is a professional-grade rework system designed for precision BGA chip repair and rework operations with advanced temperature control and positioning capabilities.

Key Features

High sensitivity industrial touch screen interface
Advanced temperature control module with microcontroller precision
Real-time temperature curve display and analysis on touch screen
Storage capacity for hundreds of user temperature curve profiles
Laser positioning system for fast, accurate chip center location
Independent 3-zone heating system with ±2°C temperature accuracy
360° rotatable titanium alloy BGA nozzle for versatile chip access
High accuracy K-type thermocouple closed-loop control
Built-in vacuum pen, work light, cross cooling fan, and laser light
Advanced alarm system with intelligent air regulation software
CE certified with emergency stop switch and automatic power protection
Dual over-temperature protection for safety

Technical Specifications

Power Supply	AC220V±10%, 50/60Hz
Total Power	3800W
Heating Power	Upper: Max 800W Lower: Max 1200W Infrared: Max 1800W
PCB Location	V-shape card slot + universal jigs and fixture
Temperature Control	K-type thermocouple closed-loop, ±2°C precision
Electrical Components	Touch screen + temperature module + microcontrollers
PCB Size Range	Max: 300×280mm, Min: 10×10mm
Chip Size Range	Max: 60×60mm, Min: 1×1mm
PCB Thickness	0.3-5mm
Temperature Sensors	1 piece
Dimensions	460×480×500mm (L×W×H)
Weight	20kg
