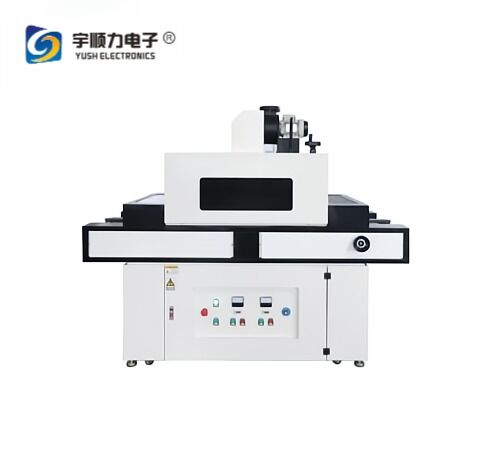

UV Curing Oven Drying Oven

Ürün Detayları

Menşe yeri: Guangdong, Çin

Marka adı: YUSH

Model numarası: YS-U1

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1 takım

Fiyat: $10,000 / set

En İyi Fiyatı Alın
Vurgulamak:

UV curing oven for PCB

,

drying oven with UV curing

,

PCB depaneling UV oven

Ağırlık:
350kg
Kontrol sistemi:
enstrüman
Konveyör Hızı:
100~3000 mm/dak
UV ışık miktarı:
1 TAKIM
UV Işık Gücü:
2Kw/takım
UV lamba ömrü:
1000-1200 saat
Konveyör malzemesi:
Teflon örgü kemeri
Etkili genişlik:
50-450mm
Soğutma Alanı:
Bağımsız
Motorlu Tip:
İthal
Hız ayarı:
0-2000mm/dak
Reflektör Tipi:
Yüksek ışık reflektörü
Zincir malzeme:
Paslanmaz çelik
Lamba Kontrolü:
Ayrı kontrol
Lamba yüksekliği:
Ayarlanabilir
Ağırlık:
350kg
Kontrol sistemi:
enstrüman
Konveyör Hızı:
100~3000 mm/dak
UV ışık miktarı:
1 TAKIM
UV Işık Gücü:
2Kw/takım
UV lamba ömrü:
1000-1200 saat
Konveyör malzemesi:
Teflon örgü kemeri
Etkili genişlik:
50-450mm
Soğutma Alanı:
Bağımsız
Motorlu Tip:
İthal
Hız ayarı:
0-2000mm/dak
Reflektör Tipi:
Yüksek ışık reflektörü
Zincir malzeme:
Paslanmaz çelik
Lamba Kontrolü:
Ayrı kontrol
Lamba yüksekliği:
Ayarlanabilir
UV Curing Oven Drying Oven
UV Curing Oven Drying Oven
Product Overview
YUSH UV oven is a cost-effective drying solution designed for adhesive applications including glue, UV photosensitive materials, inks, and epoxy resin adhesives. This equipment enables instant surface curing and drying following injection or printing processes on various materials.
Key Features
  • Advanced control system with instrument or PLC+touch screen for stable operation
  • UV lamp lifetime of 1000-1200 hours with higher energy output and stronger coating penetration
  • Abnormal lamp protection device for enhanced safety
  • Teflon conveyor belt with stepless speed regulation for stable and adjustable operation
  • Focus design with imported high-light reflector lamp shade for instant drying
  • Independent cooling area ensures low output temperature for PCBs
  • Imported motor transmission system with smooth running and adjustable speed (0-2000mm/min)
  • Stainless steel chain transportation with adjustable effective width (50-450mm)
  • In/out board detection function for monitoring board count and transportation
  • Complete UV system with transformer, reflector, lamp tube, trigger, and UV reflective devices
  • Individual UV lamp group control with adjustable height settings
UV Curing Oven Drying Oven 0
Technical Specifications
Specifications YS-U1 YS-U2 YS-U3
Transport Teflon mesh belt Stainless steel chain Stainless steel chain
Control System Instrument PLC+touch screen PLC+touch screen
Conveyor Speed 100~3000mm/min 100~3000mm/min 100~3000mm/min
UV Light Quantity 1 set 2 sets 1 set (2 sets optional)
UV Light Power 2Kw/set 3Kw/set 6Kw/set
Weight Approx. 350KG Approx. 420KG Approx. 420KG
