Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                semi-automatic solder paste screen printer, high accuracy PCB depaneling machine, touch screen solder paste printer


Ağırlık:	300 kg	Güç:	10 kw
Gerilim:	220V/380V	Boyutlar:	850×720×1650mm
Platform Boyutu:	320×400mm	PCB boyutu:	250×350mm
Şablon boyutu:	550×680mm	Baskı Hızı:	0-8000mm/dak
PCB Kalınlığı:	0,2-2,0 mm	PCB ince ayarı:	±10mm
Platform Yüksekliği:	850±20mm	Tekrarlayan hassasiyet:	±0,02 mm
Yazdırma Doğruluğu:	±0,02 mm	Konumlandırma Modu:	Dış/Referans deliği
Çekirdek bileşenler:	PLC, Şanzıman, Motor, Pompa

Ağırlık:	300 kg
Güç:	10 kw
Gerilim:	220V/380V
Boyutlar:	850×720×1650mm
Platform Boyutu:	320×400mm
PCB boyutu:	250×350mm
Şablon boyutu:	550×680mm
Baskı Hızı:	0-8000mm/dak
PCB Kalınlığı:	0,2-2,0 mm
PCB ince ayarı:	±10mm
Platform Yüksekliği:	850±20mm
Tekrarlayan hassasiyet:	±0,02 mm
Yazdırma Doğruluğu:	±0,02 mm
Konumlandırma Modu:	Dış/Referans deliği
Çekirdek bileşenler:	PLC, Şanzıman, Motor, Pompa

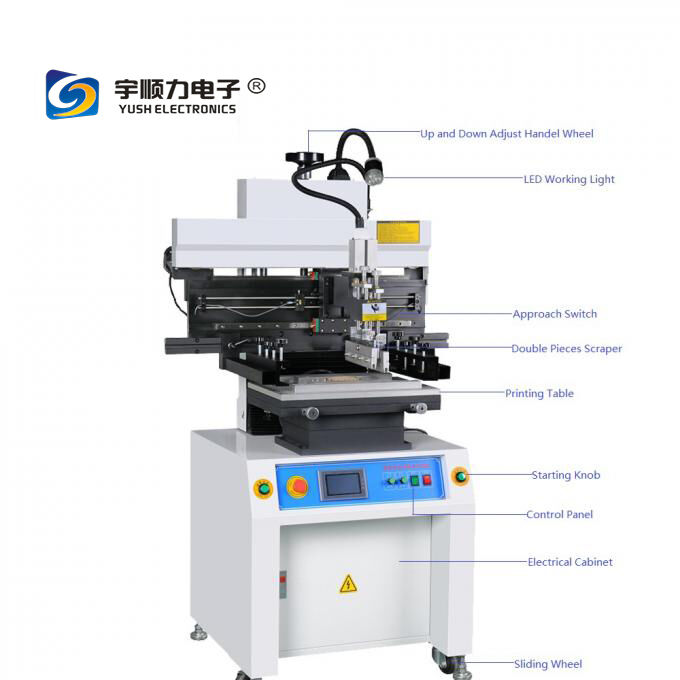

Semi-automatic High Accuracy Solder Paste Screen Printing Machine With Touch Screen

High accuracy hot sale solder paste printer machine, also known as screen printer or stencil printer, designed for precision PCB assembly applications.

Key Features

Precision guide rail and imported motor drive for blade seat conversion, ensuring high printing accuracy
45-degree rotating printing scraper for easy stencil and squeegee cleaning and replacement
Adjustable blade positioning for optimal printing placement
Combined fixed groove printing platen and PIN system for easy installation and adjustment
Supports single and double-sided printing configurations
Movable steel mesh with X, Y, Z fine adjustment capabilities
Multiple printing methods including one-way and two-way operation
Automatic counting function for production output statistics
Adjustable blade angle compatible with both steel and rubber scrapers
Touch screen interface with adjustable screen saver for extended lifespan
Adjustable printing speed display for optimal performance

Technical Specifications

Model	YS-SP400
Dimensions	850×720×1650mm
Platform Size	320×400mm
PCB Size	250×350mm
Template Size	550×680mm
Printing Speed	0-8000mm/min
PCB Thickness	0.2-2.0mm
PCB Fine Tuning Range	Front/side ±10mm
Power Supply	1PAC220V 50/60HZ
Platform Height	850±20mm
Repeating Precision	±0.02mm
Printing Accuracy	±0.02mm
Positioning Mode	Outside/Reference Hole
Weight	Approx. 300Kg
