Name: Two-slide Separator for PCB Board Cutting-YSVC-650
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 9 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Pompa emme

Marka adı: YUSH

Model numarası: YSVC-650

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1 takım

Fiyat: $9,000 / set

En İyi Fiyatı Alın

Ürün Detayları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine two-slide separator, YSVC-650 PCB board cutter, PCB separator with warranty


Ağırlık:	600 kg	Boyutlar:	1220mm * 1450mm * 1420mm
Yükseklik ofseti:	60 ~ 110mm	PCB boyutu:	322 mm * 322 mm
PCB Kalınlığı:	5 mm	Mil hızı:	50000 rpm / dak
Kesme Hızı:	100 mm/sn	Sürüş hızı:	3000 mm/sn
Kesim Hassasiyeti:	0,01 mm	Eksen hassasiyeti:	0.001mm
Güç:	2.2KW AC380V	Hava Basıncı:	2 ~ 5KG / cm2
Motor gücü:	metal rengi	vakum gücü:	2.2KW AC 380V
Çalışma Alanı:	680mm * 360mm * 50mm

Ağırlık:	600 kg
Boyutlar:	1220mm * 1450mm * 1420mm
Yükseklik ofseti:	60 ~ 110mm
PCB boyutu:	322 mm * 322 mm
PCB Kalınlığı:	5 mm
Mil hızı:	50000 rpm / dak
Kesme Hızı:	100 mm/sn
Sürüş hızı:	3000 mm/sn
Kesim Hassasiyeti:	0,01 mm
Eksen hassasiyeti:	0.001mm
Güç:	2.2KW AC380V
Hava Basıncı:	2 ~ 5KG / cm2
Motor gücü:	metal rengi
vakum gücü:	2.2KW AC 380V
Çalışma Alanı:	680mm * 360mm * 50mm

Two-slide Separator for PCB Board Cutting-YSVC-650

Two-slide Separator for PCB Board Cutting - YSVC-650

Professional two-slide separator designed for precision PCB board cutting and depaneling applications.

Machine Specifications

Physical Dimensions

Dimensions (W × D × H): 1220mm × 1450mm × 1420mm

Height Offset: 60-110mm

Manipulator System

Motor Type: JiaBao series

Positioning Repeatability: 0.001mm

Axis Working Area (Max): 680mm × 360mm × 50mm

Work Station

PCB Fixation: Standard, specialization

PCB Loading/Unloading: Manual

PCB Size (Max): 322mm × 322mm

PCB Thickness (Max): 5mm

Fixturing System

Rigidity Fixturing: Standard

Fixturing Fixation: Mechanical

Spindle Motor

Power: 400W

Spindle Speed: 50,000 rpm/min

Protection: Self / Wind cooling

Cutter Change: Specialization

Routing Capability

Cutting Speed (Max): 100mm/s

Driving Speed (Max): 3000mm/s

Cutting Precision: 0.01mm

Vacuum System

Vacuum Power: 2.2KW AC 380V

Vacuum Plumb: Standard

Utilities

Power: 2.2KW AC380V

Air Supply Pressure: 2-5 KG/cm²

Programming & Control Features

Program Editing

Inline program editing
Function edit: Line, arc, circular, U-curve
Program storage: HDD

Vision & Automation

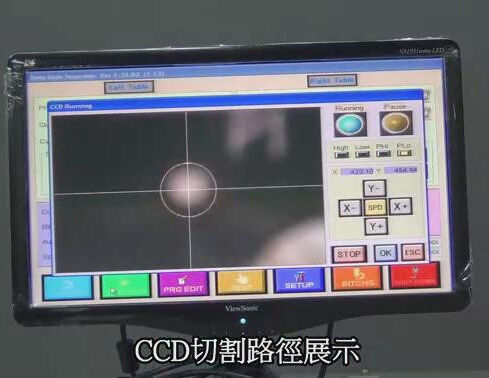

SONE color CCD vision system
Automatic milling cutter offset
Automatic vacuum setup

Operation Monitoring

Machine state indicator
Automatic tool life detection and usage time testing
Motor protection: Overheating, overload, low voltage protection
Motor overload checking: Overload, line normal, low voltage protection
Automatic tool usable time detection
Data statistics: Separate board model, separating count, diverse counting methods
Error recording: Software automatically records all alarms and machine memory

Accuracy Specifications

Axis Precision: 0.001mm

Cutting Precision: 0.1mm

Safety Features
