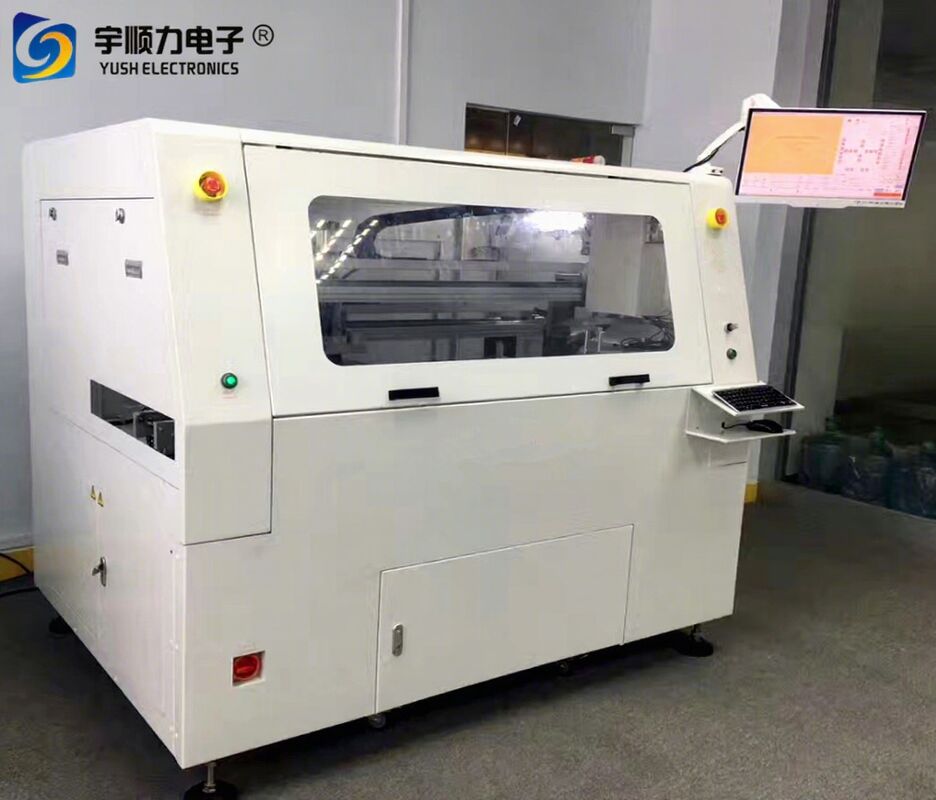

On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting

Ürün Detayları

Menşe yeri: Guangdong, Çin

Marka adı: YUSH

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1 takım

Fiyat: $18,000 / set

En İyi Fiyatı Alın

Ürün Detayları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with real-time positioning, dust-free PCB cutting machine, online circuit board cutting machine


Ağırlık:	3500 kg	Güç:	10 kw
Gerilim:	220V/110V	Kesme Hızı:	0-100 mm/sn
Tekrar doğruluğu:	±0,01 mm	Kontrol yöntemi:	Endüstriyel IPC ve PC
Sürüş modu:	AC Fiber Optik Servo Motor	Kesme Hassasiyeti:	±0,05 mm
Mil hızı:	100000 rpm	Ana voltaj:	220V 1ψ 50/60Hz
Hava Basıncı:	≥4,5kg/cm²	Güç Tüketimi:	3KVA
Toz Toplayıcı:	2hp	Toz Toplayıcı Gerilimi:	380V 3ψ
Toz toplayıcı boyutu:	U650×G400×Y1350mm

Ağırlık:	3500 kg
Güç:	10 kw
Gerilim:	220V/110V
Kesme Hızı:	0-100 mm/sn
Tekrar doğruluğu:	±0,01 mm
Kontrol yöntemi:	Endüstriyel IPC ve PC
Sürüş modu:	AC Fiber Optik Servo Motor
Kesme Hassasiyeti:	±0,05 mm
Mil hızı:	100000 rpm
Ana voltaj:	220V 1ψ 50/60Hz
Hava Basıncı:	≥4,5kg/cm²
Güç Tüketimi:	3KVA
Toz Toplayıcı:	2hp
Toz Toplayıcı Gerilimi:	380V 3ψ
Toz toplayıcı boyutu:	U650×G400×Y1350mm

On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting

Advanced PCB depaneling solution featuring automated loading, cutting, and unloading with precision vision alignment and dust collection system.

Technical Specifications

X, Y Cutting Speed	0 - 100mm/s
Machine Repeat Accuracy	± 0.01mm
Control Methods	Industrial IPC and PC
Drive Mode	AC Fiber Optic Servo Motor
Cutting Accuracy	± 0.05mm
Spindle Speed	Max 100,000 RPM
Host Voltage	220V 1ψ 50/60HZ
Air Pressure Supply	Above 4.5kg/cm²
Power Consumption	3KVA
Dust Collection	Upper Dust Collection 2HP
Dust Collector Voltage	380V 3ψ
Dust Collector Dimensions	L650 × W400 × H1350mm

Available Models

Workbench	Model	Specifications	Work Size	Machine Dimensions (W×D×H)
Double Tables	YASTM-4C-IN-AS	Standard Type	300 × 300mm	1680 × 1298 × 1700mm
Double Tables	YASTM-4C-IN-AW	Widened	500 × 450mm	1902 × 1373 × 1700mm

Key Features

In-line automatic PCB separator for automated loading, cutting, and unloading
Automatic width adjustment and PCB board reception with finished/waste identification
High-speed CCD with automatic vision alignment system for precision cutting
High-speed spindle cutting with minimal stress for any PCB form
Dual table motion for simultaneous PCB cutting and placement operations

Operational Advantages

Double slide placement device reduces cutting waiting times and increases production capacity
Eliminates artificial flap issues causing tin cracking and part damage
Avoids mechanical stress from blunt or fold operations
Suitable for finished plate arc and line cutting applications
Ideal for small piece final cutting including mobile phone base plates, PDA, and PC interface cards

System Configuration

Provides fine-tuning revision through diagrammatic machine interface with comprehensive cutting parameter settings.

Manufacturer Information

YUSH Electronic Technology Co., Ltd was founded in 2004 and is located in Jiangsu, China's world manufacturing city. The company specializes in professional PCB separator and depaneling electronic equipment machinery.

With advanced production equipment and an experienced development team (half with over 10 years in electronic equipment industry), YUSH has become one of China's largest PCB separator production bases.

Since 2004, the company has focused on product quality, safety, and innovation, developing various PCB separator types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router solutions.
