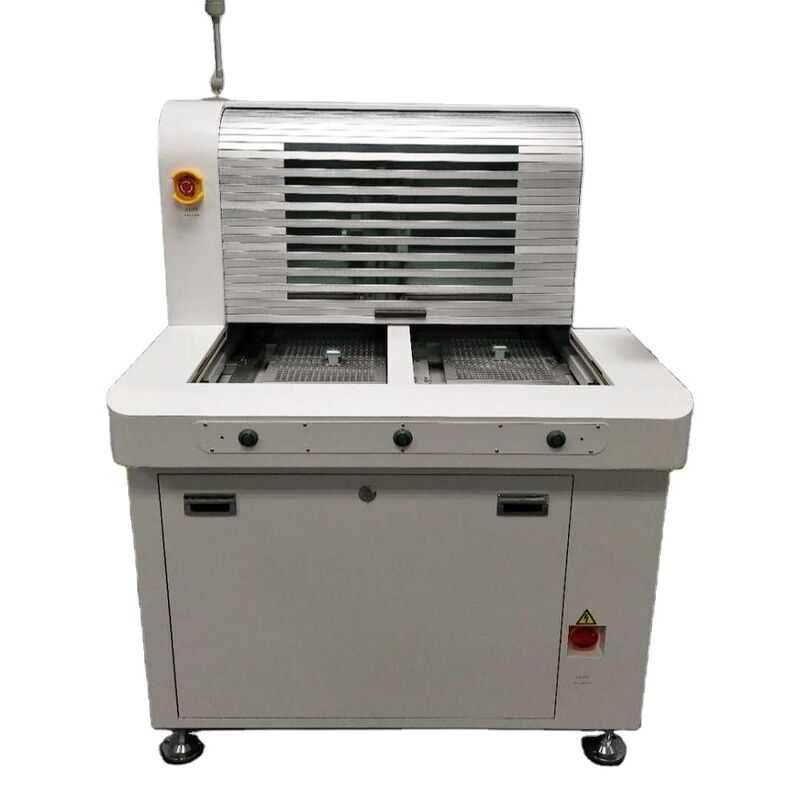

Name: CE PCB Separator Machine ,CNC Pcb Cutting Router
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 50 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Pompa emme

Marka adı: YUSH

Model numarası: YSVC-650

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1 takım

Fiyat: $50,000 / set

En İyi Fiyatı Alın

Ürün Detayları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                CE certified PCB separator machine, CNC PCB cutting router, PCB depaneling machine with warranty


Ağırlık:	800 kg	tahta kalınlığı:	0,8 ila 3,0 mm
tek şerit genişliği:	10 ila 20 mm	Vücut Boyutu:	1300x400x1000 mm
Kesme uzunluğu:	100- sınırsız	Çalışma Alanı:	350X350mm
PCB Kalınlığı:	0.3 ~ 3,5 mm	Toz toplama:	Üst veya Alt Vakum
Toz toplama kutusu:	Üst vakum 2HP-3HP/Alt vakum 3HP-5HP	Güç kaynağı:	AC220/380V50/60HZ üç fazlı
Basınçlı Hava:	0,4-0,6 MPa	Kesme Hızı:	0-100 mm/sn
Makine Tekrarı Doğruluğu:	± 0.01mm	Kesme Hassasiyeti:	± 0,05 mm
Mil hızı:	En fazla 60000 rpm

Ağırlık:	800 kg
tahta kalınlığı:	0,8 ila 3,0 mm
tek şerit genişliği:	10 ila 20 mm
Vücut Boyutu:	1300x400x1000 mm
Kesme uzunluğu:	100- sınırsız
Çalışma Alanı:	350X350mm
PCB Kalınlığı:	0.3 ~ 3,5 mm
Toz toplama:	Üst veya Alt Vakum
Toz toplama kutusu:	Üst vakum 2HP-3HP/Alt vakum 3HP-5HP
Güç kaynağı:	AC220/380V50/60HZ üç fazlı
Basınçlı Hava:	0,4-0,6 MPa
Kesme Hızı:	0-100 mm/sn
Makine Tekrarı Doğruluğu:	± 0.01mm
Kesme Hassasiyeti:	± 0,05 mm
Mil hızı:	En fazla 60000 rpm

CE PCB Separator Machine ,CNC Pcb Cutting Router

CE PCB Separator Machine, CNC PCB Cutting Router

CNC Four-axis offline PCB Depaneling Router machine YSVC-650

Technical Specifications

Working Area	350 × 350 mm (Customizable large size)
PCB Thickness	0.3~3.5mm
Waste Collection Methods	Dust collection box
Dust Collection Method	Upper or Lower Vacuum
Dust Collection Box Parameters	Upper vacuum 2HP-3HP / Lower vacuum 3HP-5HP
Sensor Switch Brand	Panasonic Japan
Servo Motor Brand	Panasonic Japan
Electrostatic Ion Wind Gun Brand	Taiwan
Guideway Brand	Taiwan PMI
Screw Brand	Taiwan TBI grinding grade
CCD Camera Brand	Germany BASLER
Spindle Brand	Japan NAKANISHI
Computer Host Brand	ASUS brand host
Machine Weight	840KG
Security Grating	Taiwan

Electrical Specifications

Power Supply	AC220/380V 50/60HZ three-phase
Compressed Air	0.4-0.6 MPA (with filter)

Operation Control

Operating System	Chinese/English Optional
Software Control Method	PC + Industrial Control System Control
Programming Methods	Computer programming, AOI scanning and editing programs faster and more accurate
Warning Light	Three-color sound and light alarm (normal work, waiting for test, fault alarm)
Fault Alarms	Air pressure instability, blocking, collision
Safe Production	Produce order mode production, four-level password protection (automatic, manual, sensor protection, etc.)

Advanced Features

Statistics Function: Both left and right board with statistics function
Information Management: Support MES information system with seamless connectivity
Network Communication: Open Ethernet Interface, supports TCP/IP protocol
BAR CODE Function: Open BAR CODE function port
Axis Drive: Servo motor + screw, guide rail for X, Y, Z axes
Worktable Operation: Servo motor + screw, guide rail for input/output
Cutting Capability: Left and right worktables can separate different products simultaneously
Height Adjustment: Different heights and products can be processed simultaneously
MARK Point Identification: Recognizes different shapes, freely settable before division
LED Aperture: Software-adjustable brightness
Camera Control: Software-controlled vertical movement
PCB Positioning: Universal fixture, positioning PIN, tool fixture options
Milling Cutter Range: 0.8-3.0mm diameter
Cutter Management: Automatic height adjustment for extended tool life
MES Integration: Open MES docking port function
BAR CODE Scanning: Open BAR CODE scan port function
Cutting Speed: 0-100mm/S adjustable per second
Worktable Configuration: Two worktables
Cutting Functions: Straight, curved, L-shaped, U-shaped cuts
Troubleshooting: Software failure detection with I/O port capabilities and detailed alerts

Service & Support

Machine warranty: 15 months. After-sales service points located in Suzhou, Dongguan, United States, Brazil, Britain, France, and Turkey. Welcome to be our foreign agent.

Basic Specifications

X, Y cutting speed: 0 ~100mm/s
Machine Repeat Accuracy: ± 0.01mm
X, Y1, Y2, Z Control Methods: Industrial IPC and PC
X, Y1, Y2, Z Drive Mode: AC Fiber Optic Servo Motor
Machine Operation and Data Storage: PC System
Cutting accuracy: ± 0.05mm
Spindle speed: Max 60000rpm
Host voltage: 220V 1ψ 50 / 60HZ
Air pressure supply: above 4.5kg/cm²
Power Consumption: 1.8KVA
Dust Collection: Lower Dust Collection (Standard) or Upper Dust Collection
Dust collector voltage: 220V (380V) 3ψ
Upper dust collector size: L650×W400×H1350mm
Dust collector size: L665×W635×H1650mm

Model Specifications

Workbench	Model	Specifications	Work Size	Machine Dimension W×D×H	Net Weight
Double Tables	YSVC-650-A	Standard Type	350×350mm	1382×1056×1500mm	840KG
Double Tables	YSVC-650-B	Widened	500×500mm	1682×1356×1500mm	940KG
