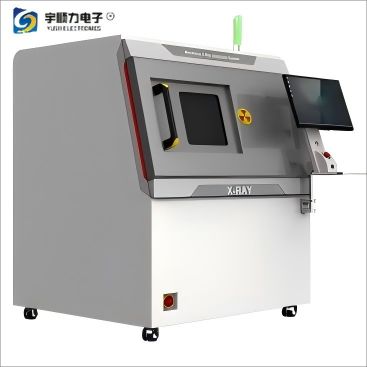

High Efficiency X-Ray Solution YS-X6600,Microfocus X-Ray Inspection System Manufacturer

Name: High Efficiency X-Ray Solution YS-X6600,Microfocus X-Ray Inspection System Manufacturer
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-X6600
Price: 38650 USD
Availability: InStock

Ürün Detayları

Place of Origin: GuangDong

Marka adı: YUSH

Model Number: YS-X6600

Ödeme ve Gönderim Koşulları

Minimum Order Quantity: 1

Fiyat: USD38650

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100

En İyi Fiyatı Alın

Ürün Detayları

Ürün Tanımı

Vurgulamak:

weight:	1170kg	Model:	YS-X6600
Standard size:	540mm*450mm	Tube voltage:	40-90kV
Total power:	1700W

weight:	1170kg
Model:	YS-X6600
Standard size:	540mm*450mm
Tube voltage:	40-90kV
Total power:	1700W

High Efficiency X-Ray Solution YS-X6600,Microfocus X-Ray Inspection System Manufacturer

1.Application

1: Semiconductor	2: Automotive electronics	3: PCB’A	4: LED
5: BGA/QFN inspection	6: Aluminum die casting	7: Mould	8: Electrical and mechanical components
9: Biological agriculture seed	10: Aviation component	11: Wheel hub	12: Wire/USB/Plug

2.Functions and Features

Function	Advantages
X-ray tube and detector can move along Z direction, Speed of table moving along X-Y direction can be adjusted.	Larger effective detection range, improving the magnification and the detection efficiency of the product.
High-definition digital flat panel detector. Max Inclined Angle is 60°, samples can be observed with a unique perspective.	Easy to identify the side defects of the product and achieve no dead angle detection.
Long life X-ray tube, maintenance free for life.	Adopt the world's top Japanese Hamamatsu X-ray source
Fault less than 2.5μm can be detected. High detection repeat accuracy.	Easy to distinguish the gold wire bending and break of the semiconductor package.
Powerful CNC Measuring Function, can test automatically, testing program can be edited.	Suitable for large-scale inspection and improve detection efficiency.
Large inspection space, can put various large-sized samples. The table can carry 10KG items.	Large table for large industrial control boards, ultra-long LED strips, and electronic products for various fields
Large navigation view, table will move to where you click the mouse.	Very easy to operate, quickly find item defects and improve detection efficiency

3.Hardware Technical Parameters

Tube type	Sealed microfocus X-ray tube
Tube voltage	Tube voltage
Tube current	10-200uA (software limited to 89uA )
Focal spot size	5-15μm
Cooling method	Convection cooling
Detector type	HD digital flat panel detector (FPD)
Imaging area	130mm*130mm
Pixel matrix	1536*1536 pixels
Inclined Angle	0-60°
Repeated test accuracy	3μm
Software inspection speed	3.0s/point (Excluding loading and unloading time)
Standard size	540mm*450mm
Effective inspection area	500mm×420mm
Load capacity	≤5Kg
Operating platform	Mouse, keyboard, 2 operating modes
Inner lead plate	5 mm thick lead plate (isolate radiation)
Dimensions	1245mm(L) * 1230mm(W) * 1900mm(H)
Weight	1170Kg
Power supply	AC 110-220V (+10%)(international general power supply)

4.Software technical parameters

BGA short	Preset NG images, software contrasts and recognizes automatically
BGA false solder	Preset NG images, software contrasts and recognizes automatically
Area measurement	Preset area size standard, NG product prompt function.
Size measurement	Distance, gold line curvature, slope, angle, etc.
Automatic positioning	Power on table auto zero function, system reset
Control mode	CNC Automatic control, manual control keyboard, mouse, 3 modes are optional.

5.Table Control

1. Speed of table can be adjusted by the spacebar: low, normal and high speed.

2. X, Y, Z three-axis motion and inclined angle are controlled by keyboard.

3. Large navigator view, clear navigation image, table will move to where you click the mouse.

6.CNC Programming

1. Simply click the mouse and you can write programs.

2. Object table moves along X, Y direction for positioning; X-ray tube and detector move along Z direction for positioning.

3. Voltage and current set by software.

4. Image settings: brightness, contrast, auto gain and exposure

5. Users can change the pause time for program conversion.

6. Anti-collision system can maximize the tilt and observation of the workpieces.

7. Automatic analysis on diameter, proportion of cavity, area and roundness of BGA.

7.X-Ray Working Principle
