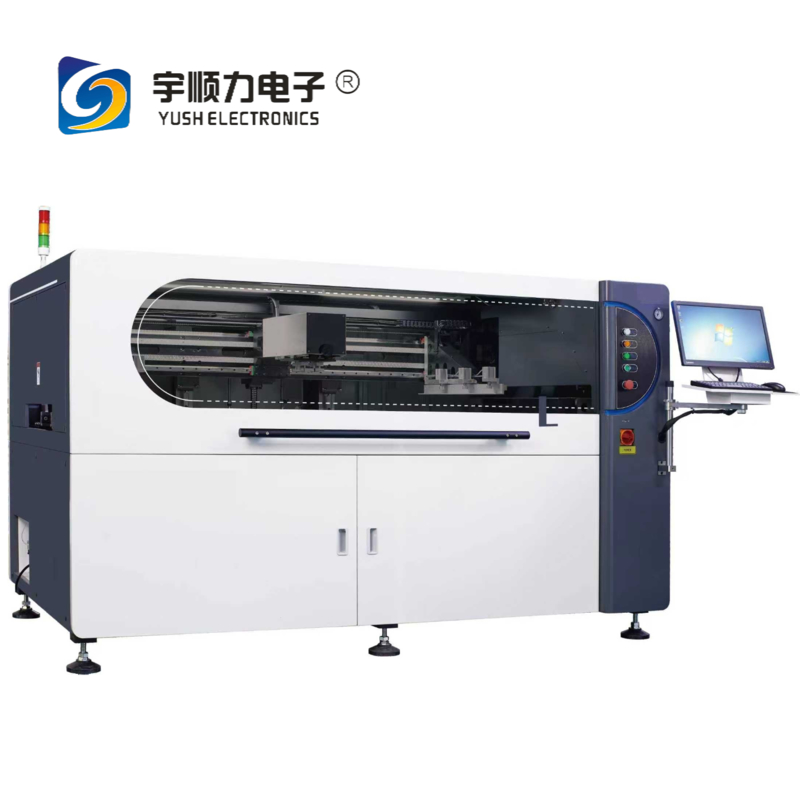

YS-12 Fully Automatic High Efficiency Visual Printer

Name: YS-12 Fully Automatic High Efficiency Visual Printer
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-12
Price: 30000 USD
Availability: InStock

Ürün Detayları

Menşe yeri: Guangdong

Marka adı: YUSH

Model numarası: YSL-12

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 1

Fiyat: USD 30000

Teslim süresi: 20 iş günü

Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union

Yetenek temini: 1000

En İyi Fiyatı Alın

Ürün Detayları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                fully automatic solder paste printer, high efficiency visual printer, YS-12 solder paste printer


Model:	YSL-12	Ağırlık:	1500kg
Min Boyut:	520*300mm	Maksimum Boyut:	1500*750mm

Model:	YSL-12
Ağırlık:	1500kg
Min Boyut:	520*300mm
Maksimum Boyut:	1500*750mm

YS-12 Fully Automatic High Efficiency Visual Printer

YS-12 fully automatic visual printing machine is mainly used in mini LED, semiconductor printing, and new energy. Can perfectly meet the process requirements of 01005, 0.25Pich with equal spacing and high precision.

Technical Parameters

Screen Frames
Min Size	520x300MM
Max Size	1500X750MM
Thickness	20-40MM
Stencil Position Mode	Manual positioning

PCB Board Parameters

PCB Min Size	50x50mm
PCB Max Size	1200x350mm
PCB Thickness	0.4-6mm
PCB Warpage	<1%
PCB Board Edge Clearance	2.5mm
Board Height	25mm
Transport Height	900±40mm
Transport Speed	Max 1500mm/S Programmable
Transport Mode	One section transportation track
Maximum PCB Board Weight	7kg
Transport Direction	Left-Right; Right-Left; Left-Left; Right-Right

Printing Parameters

Printing Speed	10-200mm/sec
Printing Pressure	0.5-25kg
Printing Mode	Single or double squeegee printing
Release Distance	0-20mm
Snap-Mode	Three stage demolding
Squeegee Type	Rubber squeegee/Steel squeegee
Release Speed	0-20mm/sec

Printing Accuracy

Repeat Position Accuracy	±0.015mm
Printing Accuracy	±0.025mm
Cycle Time (Excluding Cleaning)	<15 (Exclude Printing&Cleaning)
Changeover Time	<5Min

Cleaning Parameters

Cleaning Stroke	Automatic generation
Cleaning Position	Right cleaning
Cleaning Speed	10~200mm/sec
Cleaning Fluid Consumption	Auto&Manually adjustable
Cleaning Paper Consumption	Auto&Manually adjustable

Image Parameters

CCD FOV	10*8mm
Camera Type	130 megapixel digital camera
Camera System	Lock up/down option structure
Camera Cycle Time	150ms
Mark size	0.1~6mm
Stay Away Number	Max:1pcs
Mark Number	Max:4pcs
2D Detection	Detect low tin/missing print/continuous tin

Functional Configuration

Safely Control	Door open to stop, abnormal alarm
Smart UI	Brand new interface, shortcut key operation
Permission Setting	It can be freely set, and the authority division of operators, technicians and engineers can be set
Standard MES System	Customized output of Industry 4.0 solutions, can record SOP and equipment open data, and upload
SPI Connection	Automatic compensation for offset and detection of less tin, Automatic cleaning of steel mesh
Traceability System	Camera scan code, size compatible: 2.52.5-8.8mm

Installation equipment on-site matching

Machine Weight	1500kg
Main Power Supply	AC:220±10v;50/60Hz,3.5KW,with stable current and power supply
Ground Wire	The equipment needs to be grounded separately by pulling a grounding wire
Plug Type	English SS145(13A)
Main Air Supply Source	4.0-6qf/cm?industrial gas source, with a straight airway diameter of 8mm

Equipment operating environment

Working Temperature	-20℃-45℃
Working Environment Humidity	30%~60%
Electrostatic Protection	ESD grounding electrostatic protection
